1. Overview

Contents

• Overview

  • Preface

  • Note on status effects and how to use them

  • Some elements expect Boolean values

  • Shared tags and information

  • Item’s identifier

  • author tags

  • value

  • name

    • plural name

  • determiner

  • Description

  • Item’s image

  • rarity

  • colours

    • Custom Colours

    • status effects special case

1.1. Preface

The following documents will try it’s best to expose the different ways of augmenting your experience while playing Lilith’s Throne. While the documents tries to be as accurate as possible, you’re invited, dear reader, to consult existing xml files residing in your res/mods/ folder.

If you are unsure of anything, please use the Lilith’s Throne Discord to ask for help!

1.2. Note on status effects and how to use them

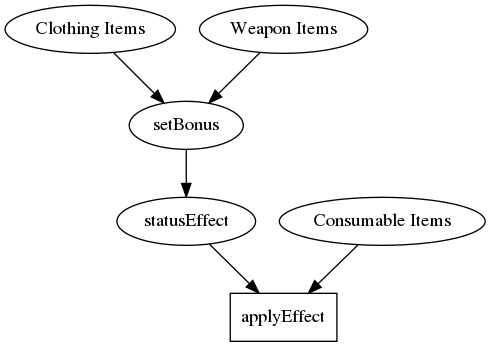

We understand by effects a set of of logic conditonally applied to a character. The source of definining that condition differs, is ultimately applied through an applyEffect block. Most wearable items has to go through a set bonus in order to have access to the status effects mechanics.

Wearable have to define themselves as part of a set. The set then activate the status effect based on simple conditionnals. Sets of one item, although counter intuitive, are acceptable. Non-wearable items have a direct access to an applyEffect block, and as such do not require a reference to a statusEffect.

1.3. Some elements expect Boolean values

Some elements are boolean switches which are either true, or false. The name of the element is usually explicit enough to inform you of it’s function, for example consumedOnUsed convey that the item should or should not be consumed once the player uses it.

Whenever an element is stated to be boolean, one of the following value is expected:

• true

• false

1.4. Shared tags and information

Across the different types of items exists shared concepts. Some of those concept may be expanded on a per category basis, for example weapons needs more colours than the other kinds of items and thus expand the available list.

1.5. Item’s identifier

The item identifier is the internal name of your objects and the only way to refer to them from between xml files. It is calculated from your clothing’s folder and .xml name using the following code:

modAuthorDirectory.getName() + "_"
    + innerChild.getParentFile().getName() + "_"
    + innerChild.getName().split("\\.")[0]

Which would resolve to innoxia_template_socks for the object located in res/mods/innoxia/clothing/template/socks.xml.

The identifier is generated for every pertinent file existing in your modules folder structure. The identifier being generated, and not user defined, is an important variable to keep in mind. If you ever rename the folder or the xml file, the identifier will change which, in turn, will invalidate all existing reference present in the players saves files.

1.6. author tags

How attribution to the mod author (you) should be displayed in the object’s tooltip. If left blank or not included, a default attribution based on folder name will be used.

The content of the element should be a short one line descriptor.

Example

A tag discreetly sewn into the T-shirt’s inner lining informs you that it was made by ’Innoxia’.

1.7. value

The base value of an object. I roughly base things on 1 flame = 10p, so 10 flames = £1.

1.8. name

The name element contain the singular form of the name of the object (One sock, two socks).

The name element can on occasion accept variables, refer to the specific documentation of the object you aim to create for details.

Names can be informal, for objects that are not normally shown to the player like outfits, and are only used for debugging purpose.

1.8.1. plural name

Each object with the possession of a name also has a plural form. If you have to inform name, expect to fill in it’s plural form.

1.9. determiner

The determiner which is displayed before an item’s name. While they are usually “a” or “an”, for things like socks or gloves, you’ll want to use “a pair of” where it makes sense. I use the CDATA tag for all text values, as it allows html markup to be embedded without causing issues.

Should this element remain undefined, the game will automatically select either “a” or “an” based on the name of the item. The game will ignore values passed to this elements if they equate “a” or “an”.

Literate Example

Innoxia was holding a pair of scissors.

Code Example

<determiner><![CDATA[a pair of]]></determiner>

1.10. Description

A long form description of the item. Should be present for each object under the items category.

1.11. Item’s image

The element imageName will be found through the different objects. It informs of the file path for the object’s image. All images must be .svg format. Colours to be used are described below, above the primaryColours element. I use the free program InkScape to make my .svg images. .svg images scale perfectly up and down to any size, so, while it should be a square, it doesn’t really matter what size your canvas is (although I use 256 × 256 as a personal preference).

If the item can be equipped, then an imageEquippedname must also be provided. Please refer to the appropriate documentation for more details.

1.12. rarity

The rarity of several object can be defined using the constants listed in the file src/com/lilithsthrone/game/inventory/Rarity.java.

Please note that any item set with a rarity of LEGENDARY will not appear naturally in the game, neither from the shop keepers nor random encounters.

1.13. colours

Colours are available for most moddable items. The rules to follow are generally the same for all type of item, with the exception for the weapons which expand on the core mechanic.

Your items can be coloured any way you like, but if you’d like the player to be able to dye your clothing, you can specify available colours here. primaryColours, secondaryColours, and tertiaryColours can all spawn in as a default colour, while their ’Dye’ counterparts are only available if the player chooses to dye the clothing in that colour. The game detects specific colour values, and recolours them to the value chosen by the player. These values are as follows:

• Red is used as base colour for changing the primary colour of the graphic in-game, and the game will only recognise and change the following colours:

  1. #ff2a2a

  2. #ff5555

  3. #ff8080

  4. #ffaaaa

  5. #ffd5d5

• Orange is used as base colour for changing the secondary colour of the graphic in-game, and the game will only recognise and change the following colours:

  1. #ff7f2a

  2. #ff9955

  3. #ffb380

  4. #ffccaa

  5. #ffe6d5

• Yellow is used as base colour for changing the tertiary colour of the graphic in-game, and the game will only recognise and change the following colours:

  1. #ffd42a

  2. #ffdd55

  3. #ffe680

  4. #ffeeaa

  5. #fff6d5

Important

Any gradients that you use should be called: innoGrad1, innoGrad2, etc.

A visual representation of these colours is available on the wiki.

Colour lists to be used can be found here: src/com/lilithsthrone/utils/colours.

You can leave the attribute recolouringAllowed out of colour definitions. If you want the player to be unable to change this colour, then set it as false. This is only used in very niche situations (such as for the filly choker).

You can also make your own, custom list of colours to be used. The following colours in tertiaryColoursDye are all found within the list preset ALL, but this is for a demonstration.

If you want to include custom colours, do not define a values attribute, and instead, list each Colour.

Important

please use the Colour values that start with CLOTHING_.

Code Example

<primaryColours recolouringAllowed="true" values="JUST_WHITE"/>
<primaryColoursDye values="ALL"/>
<secondaryColours values="JUST_BLACK"/>
<secondaryColoursDye values="ALL"/>
<tertiaryColours values="JUST_WHITE"/>
<tertiaryColoursDye>
        <colour>CLOTHING_WHITE</colour>
        <colour>CLOTHING_BLACK</colour>
        <colour>CLOTHING_GREY</colour>
        <colour>CLOTHING_RED</colour>
        <colour>CLOTHING_RED_BRIGHT</colour>
        <colour>CLOTHING_RED_DARK</colour>
        <colour>CLOTHING_ORANGE</colour>
        <colour>CLOTHING_ORANGE_BRIGHT</colour>
        <colour>CLOTHING_ORANGE_DARK</colour>
        <colour>CLOTHING_BROWN</colour>
        <colour>CLOTHING_TAN</colour>
        <colour>CLOTHING_YELLOW</colour>
        <colour>CLOTHING_GREEN_LIME</colour>
        <colour>CLOTHING_GREEN</colour>
        <colour>CLOTHING_GREEN_DARK</colour>
        <colour>CLOTHING_TURQUOISE</colour>
        <colour>CLOTHING_BLUE_LIGHT</colour>
        <colour>CLOTHING_BLUE</colour>
        <colour>CLOTHING_BLUE_DARK</colour>
        <colour>CLOTHING_PURPLE</colour>
        <colour>CLOTHING_PURPLE_DARK</colour>
        <colour>CLOTHING_PURPLE_LIGHT</colour>
        <colour>CLOTHING_PINK</colour>
        <colour>CLOTHING_PINK_LIGHT</colour>
</tertiaryColoursDye>

1.13.1. Custom Colours

You can define any number of custom colours to replace the shades you’ve coloured your svg with.

The copyColourIndex attribute seen in the example below defines which colour index should be copied into this colour slot on weapon generation. This particular colour, having an index of 0, will always be coloured the same as the primary colour when generated. Indexes go from 0 \(\to\) X, where X is the number of defined colours. i.e. If you only define primary and secondary, the first custom colour will have an index of 2.

Attributes from c0 \(\to\) c4 are the colours which you’ve used in your svg and would like replaced with the colours you define below. c0 is the darkest shade. Shades can go up to any number, but setting just 5 shades should work best.

If you have used the primary / secondary / tertiary elements up above, then do not use their associated colour hexes. (i.e. If you’ve defined a primaryColours element, do not use either of #ff2a2a, #ff5555, #ff8080, #ffaaaa, or #ffd5d5 in the customColour attributes.)

You should also not use any of the following, as they are reserved for pattern colours:

#f4d7d7 #e9afaf #de8787 #d35f5f #c83737

#f4e3d7 #e9c6af #deaa87 #d38d5f #c87137

#f4eed7 #e9ddaf #decd87 #d3bc5f #c8ab37

<customColours>
    <customColour copyColourIndex="0" c0="#6C5353" c1="#916F6F" c2="#AC9393" c3="#C8B7B7" c4="#E3DBDB"> (ref:cci)
            <defaultColours>
                    <colour>CLOTHING_GREY</colour> <!-- The colours which this clothing should spawn in with. -->
            </defaultColours>
            <extraColours values="ALL"/> <!-- The colours which this clothing can be dyed to. -->
    </customColour>
</customColours>

1.13.2. status effects special case

Status effects also accept colours, but to a lesser degree. The colours for status effects are there to recolor the icon, as such at most three values are expected for primary, secondary, and tertiary colours.
